Scheduling Calculation Results


All calculations performed by ElumTools can be scheduled automatically using the Create Schedule command from the toolbar. Once created, they can be edited to suit your preferences using Revit's powerful scheduling tools. All of the parameters created by ElumTools related to calculation points are "SharedParameters," so they can be easily scheduled independently if preferred.

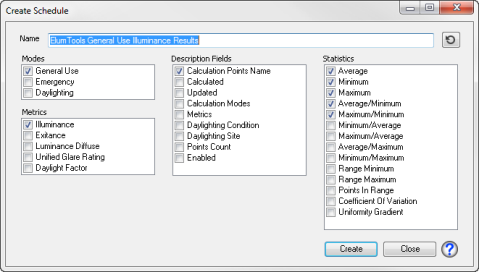

ElumTools automated scheduling capability allows you to create a schedule containing any of the items shown in the dialog below. You may prefer to create multiple schedules (one for each mode for example), so the schedule tool remains open after each schedule is created. Close the dialog when your work is complete.

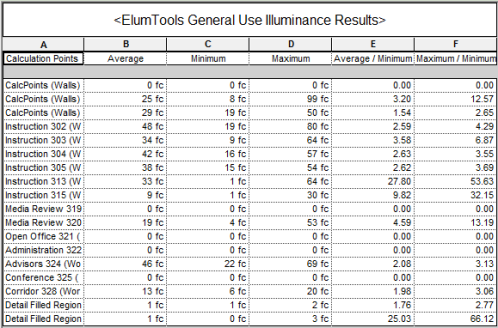

An example of an ElumTools Schedule created per the settings above:




ElumTools copyright 2018 Lighting Analysts, Inc.
